This is the ramp i like the most. i build one for my city, and after it was build, they said no bikes allowed. so if you are ever in kortrijk (belgium), go tell them how mutch they suck. but on with the ramp, it rules for doing tricks on the deck, you can get 5 feet airs out of it (that is if you can air like my friend), and i can do backflip fly outs on it. so this isn't a trick for only small tricks. You can add the spine, or add a wallride, or a jumpbox, or whatever you want.

SHOPPING LIST

• 1 plate from 122 x 244 cm (4 by 8 feet) and 18mm (3/4 inch), and some left overs
• 2 plates from 122 x 244 cm (4 by 8 feet) and 9 mm (3/8 inch)
• about 20 studs from 5 x 10 cm (2 by 4's) and 244 cm (8 feet) long
• good wood screws (lots)
• 1 template plate

CAN WE BUILD IT? YES WE CAN!

• Start by drawing all the lines like on the plan, and also draw the curve (see template on how to) on the template.
• saw the template
• draw the template on the 18mm plate, and cut out the transitions.
• add the 135cm stud on the end of the transition.
• add a 224 cm stud on the down part of the transition.
• the first 4 studs are 10 cm shorther than the others. they are placed on the down stud, for the last 2, you will have to use a bit of felt over 2 by 4 to make it fit better to the transition.
• add the other studs about every 15 to 20 cm.
• add the first layer, start at the same level as the first 2 by 4. and leave a bit after the top of the ramp.
• thats it. add the coping, deck , your choise of top layer and flat bottom and your have some new plaything.
• sweet!

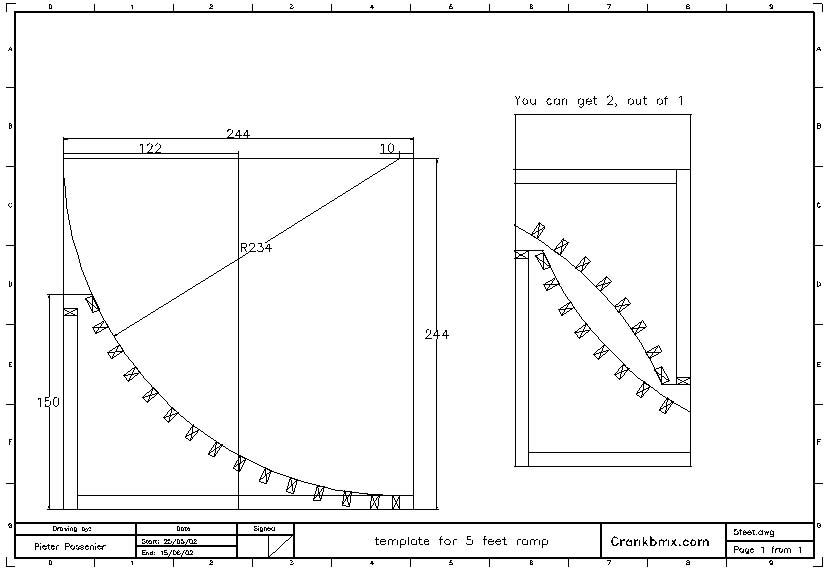

THE PLANS

• download the template for autocad lite: here
• download the template for autocad: here
• download the template jpg screendump: here
• download the 3d max file: comming soon
• download the 3d file screendump: comming soon
